Airslides

Airslides application

It is used in installations for conveying powder materials at low speed. To use this system, the material to convey must be fluidisable. It is also used for the dosing of materials.

GMdix airslide technology is used for the loading and unloading of storage and homogenisation silos, and for conveying materials in different manufacturing phases for cement, ash, steel and plaster dust.

Installations are also designed for other industries: food, chemical, steel, mining for fluidisable products.

Operation

This technology is a system that enables powder materials to be conveyed suspended on an air bed.

Air enters the airslide through threaded sleeves and is distributed over the entire surface. Once sufficient internal pressure is achieved, the air exits through the porous fabric, starting the process of fluidising the material. Fluidisation allows particles to be separated by surrounding them with air bubbles and keeping them loose.

Finally, the material is conveyed due to the slope of the airslide between 4º and 10º.

Any questions?

We manufacture industrial equipment. Contact us to learn more.

Advantages

Reliable discharge of low-flow bulk solids.
Delicate handling of the discharge material, with no particle degradation.
Ease of maintenance.
Ease of assembly.
Abrasion resistance.
Silent.
Low investment and maintenance costs.
Great installation flexibility due to the equipment used.

Technical characteristics

GENERAL MEASUREMENTSCAPACITY IN m3/h ACCORDING TO SLOPE
TYPEABLH4%5%6%7%12%15%
250
250150ACCORDING TO PROJECT REQUIREMENTS ACCORDING TO PROJECT REQUIREMENTS 50607590120-140
3153152507590110130140-175
400400250100125150175175-250
500500400150185225275250-360
630630500225275335410345-540

Related Products

Liquid dosing equipment
Solids Dosing Equipment
Hoppers
Airslides
Tanks

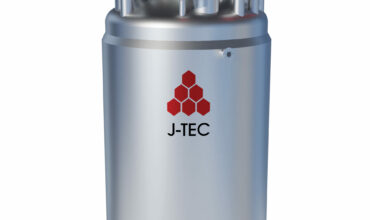

Industrial Reactor
